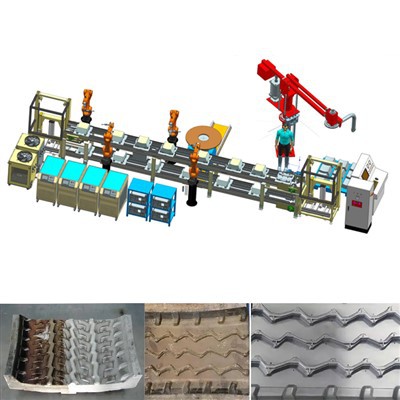

Tyre Inner Wall Laser Cleaning Intelligent Workstation

Cov tsheb tshiab lub zog yog ntsiag to dua li cov tsheb sib xyaw ua ke hauv lub tshuab hluav taws xob, thiab kev txhim kho ntawm lub zog tshiab tsheb kuj tau muab cov kev cai nruj dua rau kev tswj lub suab nrov. Lub zog tshiab lub tsheb log tsheb tuaj yeem hloov kho kom zoo dua rau cov kev xav tau ntawm cov xwm txheej tshiab los ntawm kev txhim kho cov qauv roj hmab, lub log tsheb sib piv, lub log tsheb ntim, cov khoom siv tread, tread pattern, thiab lwm yam.

Raws li "ntsuab" txheej txheem tu, laser tu tshuab muaj ib daim ntawv thov zoo hauv kev tsim thiab tsim cov log tsheb uas ntsiag to. Nws siv lub siab tsom siab - lub zog laser beam kom irradiate saum npoo ntawm cov ntaub ntawv organic polymer, ua rau lub cev thiab tshuaj hloov pauv ntawm cov khoom siv, yog li hloov nws cov khoom. Nws tuaj yeem txhim kho lub log tsheb zoo thiab cov txheej txheem tsim khoom, txhim khu kev sib txuam ntawm lub log tsheb thiab lub cev lub tsheb, thiab txhim kho tag nrho cov kev ua tau zoo ntawm lub tsheb. Los ntawm txheej cov phab ntsa sab hauv ntawm lub log tsheb nrog cov khoom muag muag- zoo li cov khoom siv polymer sib xyaw, nws ua tiav kev tawg- pov thawj, puncture - pov thawj thiab xau- pov thawj ua haujlwm. Nyob rau tib lub sijhawm, ib txheej ntawm polyurethane daim txhuam cev yog muab tso rau ntawm qhov chaw ntawm cov kua nplaum los tiv thaiv - kom ua tiav lub suab rwb thaiv tsev, nqus cov suab nrov ntawm kab noj hniav, thiab ua tiav cov nyhuv mute.

Laser ntxuav tau zoo tshem tawm cov seem tso tawm ntawm cov phab ntsa sab hauv ntawm lub log tsheb thiab txhim kho cov adhesion ntawm cov txheej txheej thiab polyurethane daim txhuam cev. Cov txheej txheem ntxuav tsis tas yuav tsum tau siv cov khoom siv, yuav tsis ua rau lub log tsheb puas, ua haujlwm tau zoo, muaj kev sib raug zoo, thiab tuaj yeem ua tiav kev tu lub tshuab.

Evaluate samples by selecting pulsed laser equipment and developing a sound process flow. Surface tension values under different parameters were obtained through dyne pen testing. The results show that different process parameters (laser energy density, processing efficiency) will affect the surface tension of the tire inner wall. Therefore, it is necessary to develop reasonable process parameters for the production process of silent tires. After testing, laser cleaning is uniform and meets the requirements for substrate damage. After cleaning, the internal friction coefficient increases to >37mN / m, thiab nto nro nce mus txog 40dyne / cm.

Siv lub ntsuas roughness los ntsuas qhov saum npoo tom qab kho laser, nrog thaj tsam ntawm S1-S4, sib xws rau cov txheej txheem sib txawv. Cov qauv xeem yog ISO1997, qhov nkhaus yog R, thiab cov lim dej yog GAUSS. Cov txiaj ntsig tau pom tias qhov sib txawv tsis muaj qhov sib txawv ntawm qhov roughness ntawm qhov chaw. Nyob rau hauv daim duab, S3 cheeb tsam muaj qhov siab tshaj plaws roughness, uas yog raws li qhov tshwm sim ntawm dyne cwj mem xeem. Tsis tas li ntawd, kev kho laser zoo heev ua rau lub ntsej muag roughness.

Pom nyob rau hauv qhov kev nthuav dav ntawm 1000 zaug, nws tau pom tias muaj coob tus me me concave blocks tau dav faib rau hauv cheeb tsam laser irradiation, thiab cov particle loj mus txog qib micron. Thaum lub laser irradiates saum npoo ntawm cov khoom, nws yuav rhuav tshem cov roj hmab saw qauv, tsim no irregular concave feature, thiab ua kom lub nto roughness.

Kev siv lub tshuab laser los ntxuav cov phab ntsa sab hauv ntawm lub log yuav tsum tsis muaj cov khoom siv, tsis muaj kev puas tsuaj rau lub log tsheb, kev ceev ceev ceev, thiab kev ua haujlwm zoo. Nws tuaj yeem paub txog kev tu tsis siv neeg thiab tsis tas yuav tsum tau tsoos polishing rau kev ua haujlwm tom ntej nti tu thiab cua tshuab tom qab ziab ntub thiab ziab ua haujlwm. Laser tu tsis muaj kuab paug paug thiab npaj siv, muab siab - kev npaj zoo rau kev sib txuas ntawm cov log tsheb uas ntsiag to, tus kheej - kho cov log tsheb, thiab tus kheej - kuaj cov log tsheb.

Tshuab Configuration

• Laser ntxuav system

Txais tus kheej -tsim laser tswj system, laser fais fab, kab dav, nws tus kheej adjustable, ruaj khov system, yooj yim rau kev khiav lag luam.

• Laser ntxuav taub hau

Txais tus kheej-tsim hloov lub taub hau ntxuav, tsis tas yuav hloov lub teb lo ntsiab muag, thiab lub focal ntev yog txiav / manually adjustable.

• Tsis siv neeg plua plav tshem tawm

Nruab nrog cov txheej txheem tshem tawm plua plav, nkag mus rau lub chaw tswj hwm chaw ua haujlwm, ib qho - pib qhov tseem ceeb- nres, txhawm rau txhim kho qib ntawm kev ua haujlwm ntawm lub chaw ua haujlwm, txo cov neeg ua haujlwm cuam tshuam.

• Txias System

Nruab nrog kev ua haujlwm txias txias, txias cov khoom siv laser txhua lub sijhawm los txhim kho kev siv cov khoom siv tas mus li sijhawm thiab kev pabcuam lub neej.

• Kev siv tau

Hom chaw ua haujlwm no tuaj yeem siv los ua ib qho chaw sawv ntsug- ib leeg chaw ua haujlwm lossis kev koom ua ke rau hauv cov log tsheb ntau lawm ua ib feem ntawm cov log tsheb ntau lawm.

• Kev nyab xeeb siab

Piv nrog rau cov tsoos log tsheb tu cov cuab yeej, kev siv cov nqi qis, kev ua haujlwm yooj yim, kev saib xyuas yooj yim, kev nyab xeeb thiab kev ntseeg tau.

Performance Parameters

Tshuab Advantage

Lub log tsheb sab hauv phab ntsa laser tu tshuab muaj ntau yam zoo dua li kev tu ib txwm siv xws li xuab zeb blasting, tshuaj ntxuav, thiab ntxuav phau ntawv.

1. Tsis yog-kev sib cuag thiab tsis yog- abrasive. Lub laser beam ncaj qha illuminates lub puab nto ntawm lub log tsheb yam tsis muaj lub cev tiv tauj lub puab phab ntsa ntawm lub log tsheb. Qhov no tshem tawm txoj kev pheej hmoo ntawm kev puas tsuaj roj hmab uas tuaj yeem tshwm sim los ntawm kev ntxuav abrasive.

2. High precision thiab adjustable los ntxuav tej thaj chaw ntawm lub puab phab ntsa. Qhov no tso cai rau lub hom phiaj tu ntawm thaj chaw uas muaj cov kab mob sib kis tau ntau dua, xws li lub xub pwg nyom ntawm cov log tsheb.

3. Ib puag ncig tus phooj ywg. Tsis zoo li kev tu ib txwm siv, nws tsis siv tshuaj lossis tsim cov khoom pov tseg. Qhov no txo ​​qhov kev cuam tshuam ib puag ncig ntawm cov log tsheb tsim thiab kho.

Daim ntawv thov tshuab

Tyre sab hauv phab ntsa laser ntxuav tshuab tau siv los ntawm ntau lub tuam txhab log tsheb loj thoob ntiaj teb, suav nrog Michelin, Goodyear, Continental, thiab Bridgestone. Nws yog siv dav hauv cov txheej txheem tsim cov log tsheb tshiab thiab kev saib xyuas cov log tsheb qub.

Thaum lub sij hawm tsim cov log tsheb tshiab, laser tu tshuab yog siv los tshem tawm cov neeg ua hauj lwm tso tawm thiab lwm yam kab mob los ntawm cov phab ntsa sab hauv ntawm pwm. Qhov no ua kom lub log tsheb tshiab muaj qhov huv thiab du sab hauv, txhim kho nws qhov zoo thiab kev ua haujlwm zoo.

Hauv kev saib xyuas cov log tsheb siv, laser ntxuav tshuab yog siv los tshem tawm cov kab mob sib kis ntawm cov phab ntsa sab hauv ntawm lub log tsheb. Qhov kev tsim no tuaj yeem ua rau lub log tsheb tsis sib xws, kev co thiab hnav tsis sib xws, ua rau muaj kev nyab xeeb ntawm txoj kev. Los ntawm kev siv lub tshuab ntxhua khaub ncaws laser, tsim - cov kab mob tuaj yeem raug tshem tawm thiab cov log tsheb rov qab los rau lawv qhov qub. Qhov no txhim kho cov log tsheb kev nyab xeeb, kev ua haujlwm thiab kev ua haujlwm ntev thiab txo cov log tsheb uas yuav tsum tau hloov.
