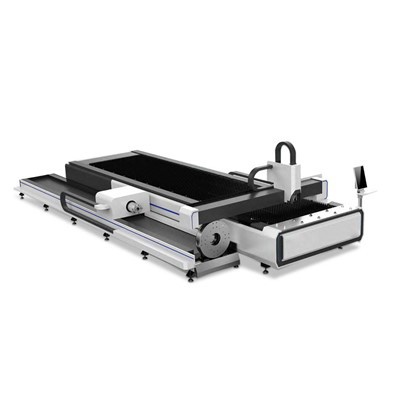

6000w Laser Txiav Ua Haujlwm Platform
Cov lus piav qhia Lub fiber ntau laser txiav tshuab ua los ntawm peb lub tuam txhab txais fiber ntau laser qhov chaw nrog thoob ntiaj teb advanced technology, nruab nrog imported high-precision dual-tsav iav khib thiab linear qhia thiab lwm yam kis tau tus mob mechanisms, thiab tswj los ntawm advanced fiber ntau ...
Product Description
Lub tshuab fiber ntau laser txiav ua los ntawm peb lub tuam txhab txais cov khoom siv fiber ntau nrog cov thev naus laus zis thoob ntiaj teb, nruab nrog cov khoom siv high-precision dual-tsav iav khib thiab cov kab ntawv qhia thiab lwm yam kev sib kis tau zoo, thiab tswj los ntawm cov fiber ntau laser CNC system. Lub precision CNC fiber ntau laser txiav tshuab yog cov khoom siv high-tech integrating laser txiav, precision machinery, CNC tshuab thiab lwm yam kev qhuab qhia. Lub tshuab muaj kev ua haujlwm zoo dynamic thiab ceev servo teb. Nruab nrog nruab nrab lub zog fiber ntau laser qhov chaw, nws tuaj yeem ncav cuag qhov siab tshaj plaws txiav ceev ntawm 80 m / min, ua tiav kev ua haujlwm siab ceev.
Khoom Parameters
|
Ntaus qauv |
QY-6020S-6000W Interactive Working Platform |
|
Tso zis zog |
6000w |
|
Laser qhov chaw hom |
Fiber laser qhov chaw |
|
Qhov chaw ua haujlwm (ntev × dav) |
6020mm × 2000mm |
|
X-axis taug kev |
2000 hli |
|
Y-axis taug kev |
6 020mm |
|
Z-axis taug kev |
370 hli |
|
Qhov siab tshaj plaws txiav ceev |
50m / min |
|
Qhov siab tshaj plaws khiav ceev |
110m / min |
|
Maximum idle acceleration |
1.5G |
|
Qhov siab tshaj plaws txiav thickness ntawm cov ntawv hlau |
25 hli (Oxygen / Carbon Steel) |
|
Dav ntawm incision seam |
0. 10 (raws li cov khoom siv) |
|
X/Y Axis positioning raug |
± 0.03mm/m |
|
X/Y Axis repeatability positioning raug |
± 0.02mm |
|
Max load peev xwm ntawm kev ua haujlwm platform |
5500kg ib |
|
Tus naj npawb ntawm cov theem |
3 |
|
Rated voltage ntawm fais fab mov |
380V |
|
Ntau zaus |
50 Hz |
|
Tag nrho lub zog tiv thaiv qib |
IP54 |
Khoom zoo
- Kev ua haujlwm siab:Qhov ceev yog 10 npaug ntawm CO2 laser txiav tshuab ntawm tib lub zog thiab 5 npaug ntawm YAG laser txiav tshuab.
- Tsawg zog noj:tsis tshua muaj zog noj, tsuas yog 1/6 ntawm YAG laser txiav tshuab.
- Kev kho qis:optical fiber kis tau tus mob, tsuas yog lub lens tiv thaiv yuav tsum tau hloov, tsis tas yuav kho txoj kev kho qhov muag.
- Tus nqi ua haujlwm qis:Siab photoelectric hloov dua siab tshiab tus nqi, tsis tsuas yog siv hluav taws xob tsawg, tab sis kuj muaj kev saib xyuas tsawg dua YAG.
- Siab laserqhov chawstability:siv cov nruab nrab-lub zog txuas ntxiv fiber ntau laser qhov chaw, kev ua haujlwm ruaj khov, laser qhov kev pabcuam lub neej tuaj yeem ncav cuag 100, 000 teev.
- Cov nyhuv txiav zoo:High-precision hluav taws xob proportional valve imported los ntawm lub teb chaws Yelemees tuaj yeem tswj qhov siab ntawm kev txiav cov pa roj kom ua tiav cov txiaj ntsig zoo tshaj plaws.
- Yooj yim tuav cov khoom:Siv lub tsheb me me los sau cov khoom poob, uas yooj yim rau kev sib txawv thiab tuav cov khoom poob.
- Kev ua haujlwm yooj yim:Nws siv lub siab CNC system rau fiber ntau laser tej tshuab raws li lub qhov rais operating system, uas integrates ntau dlhau functional modules rau laser txiav tswj. Nws muaj cov haujlwm muaj zog, zoo tib neeg-tshuab interface thiab kev ua haujlwm yooj yim.
- Advanced software:Tshwj xeeb nesting software yog cov thev naus laus zis thev naus laus zis rau CNC txiav tshuab kom ua tiav "txhua lub sijhawm txiav, ua haujlwm zoo thiab siab nesting tus nqi txiav", thiab yog qhov tseem ceeb lav rau kev txuag cov ntaub ntawv zoo thiab txhim kho kev ua haujlwm.
- High precision thiab siab dawb ceev:Lub tshuab txais gantry-hom ob-tsav qauv, imported high-precision iav khib thiab linear qhia rail, nrog ruaj khov kis tau tus mob, kev kub ceev thiab siab precision.
- High stability ntawm lubua haujlwmtxaj:Lub txaj txais ib qho qauv welded, uas yog ntxhib-machined tom qab annealing thiab tom qab ntawd raug kev co kev laus, uas tuaj yeem tshem tawm tag nrho cov kev ntxhov siab ntawm vuam thiab kev ua haujlwm. Nws muaj qhov zoo rigidity thiab siab precision, tuaj yeem tswj kev siv mus sij hawm ntev yam tsis muaj deformation, thiab txhim kho cov lus teb ceev thaum lub sij hawm txav thiab ruaj khov ntawm lub txaj.
- High ceev thiab acceleration:X, Y, thiab Z axes txhua tus siv servo motors tuaj ntawm Nyiv, uas muaj kev ua haujlwm siab, kev kub ceev, loj torque, loj inertia, ruaj khov thiab ruaj khov. Qhov no ua kom lub siab ceev thiab acceleration ntawm tag nrho lub tshuab.
- Stable txiav taub hau kev ua tau zoo:EO lub siab fiber ntau laser txiav lub taub hau thiab capacitive sensor yog siv, uas muaj siab sensing raug, rhiab cov lus teb, thiab cov feem ntau ruaj khov thiab txhim khu kev qha kev ua tau zoo.
Khoom siv
Daim ntawv thov kev lag luam: Muaj feem xyuam rau cov ntawv hlau ua, aviation, aerospace, electronics, khoom siv hluav taws xob, subway accessories, tsheb, khoom noj khoom haus machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical khoom, elevators, khoom siv hauv tsev, khoom plig, khoom siv tes ua. , kho kom zoo nkauj, tshaj tawm, hlau sab nrauv ua, chav ua noj thiab lwm yam kev lag luam thiab kev lag luam.
Cov ntaub ntawv siv tau: Kev tshaj lij siv rau kev txiav ntau yam ntawm cov hlau nyias nyias, zoo siab txiav cov pa roj carbon steel daim hlau, stainless hlau daim hlau, thiab tuaj yeem txiav aluminium alloy daim hlau, galvanized daim hlau, electrolytic daim hlau, silicon steel, titanium alloys, aluminium-zinc -plated daim hlau, nyias tooj liab daim hlau thiab lwm yam ntaub ntawv hlau.
